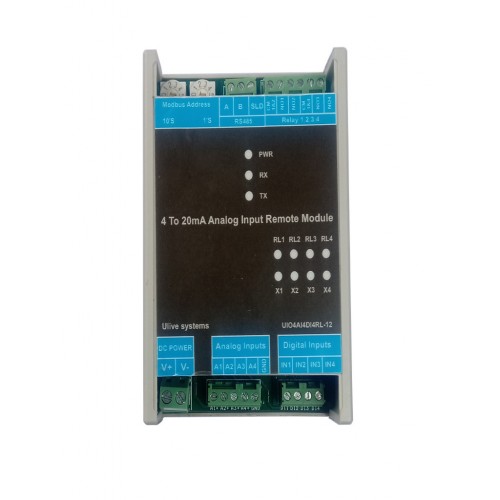

I/O module, RS 485, UIO-4AI4DI4RO-20mA

Description

Features
● Four Channel 4 ~ 20mA 12 bit Resolution ADC
● Four Relay output with configurable alarm or Master Control
● Four 24V Digital Input
● Modbus RS-485 Protocol Interface.
● Individual Channel offset calibration
● Resolution at 0.001 mA
● Convenient address selection rotatory switch from 1 – 99 Address
● Complete range of baud rate settings supported
● Sensor open indication
● Suitable for both Din Rail and Wall Mountable
● Product Dimensions 110mm x 70mm x 55mm (L x W x H)

Specification

* Four Channel 4 ~ 20mA 12 bit Resolution ADC
* Four Relay output
* Four 24V Digital Input
* Modbus RS-485 Protocol Interface.
* Individual Channel offset calibration
* Resolution at 0.005 mA
* Convenient address selection rotatory switch from 1 – 99 Address
* Complete range of baud rate settings supported
* Sensor open indication
* Suitable for both Din Rail and Wall Mountable
* Product Dimensions 110mm x 70mm x 55mm (L x W x H)
* 1 Year Warranty against any manufacturing defects
