Description

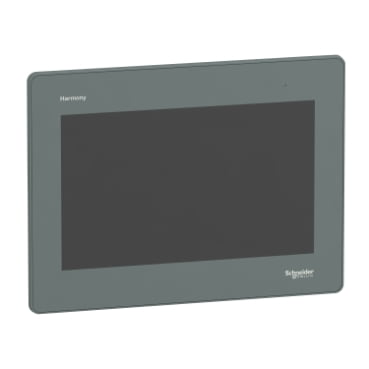

Schneider 10.1 inch widescreen, Universal model, 2serial ports,1Ethernet port, embedded RTC
23.1% OFF
Schneider 10.1 inch widescreen, Universal model, 2serial ports,1Ethernet port, embedded RTC
Original price was: ₹ 76,589.83.₹ 58,915.25Current price is: ₹ 58,915.25.
10.1 inch widescreen, Universal model, 2serial ports,1Ethernet port, embeddedRTC
| Range of product | Harmony Easy GXU |
|---|---|
| Product or component type | Advanced touchscreen panel |
| display type | LCD touch screen |
| display colour | 65536 colours |
| display resolution | 800 x 480 pixels WVGA |
| display size | 10.1 inch |
| Backlight lifespan | 20000 hours |
|---|---|
| [Us] rated supply voltage | 24 V DC |
| Software designation | Vijeo Designer Basic configuration software |
| Memory description | Internal, 48 MB for application Internal DDR, 128 MB Internal, 128 kB for backup |
| Integrated connection type | USB type mini B COM1 serial link: 9-way male SUB-D connector, RS232C COM2 serial link: 9-way male SUB-D connector, RS422/RS485 USB type A Ethernet 10/100BASE-TX |
| cut-out dimensions | 255 x 185 mm |
| Quality labels | CE |
|---|---|
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| IP degree of protection | IP65 (front panel) |
1 in stock
